EA1012AVRT

EA1012AVRT
FEATURES
  • LPS Compliance
  • Protections:
    Short circuit / Over Voltage / Over current
  • Energy Efficiency Level VI or CoC Tier II
  • No Load Power Consumption ≤ 0.1W (VI), ≤ 0.075W (Tier II)
  • MTBF > 100,000 hours
Product Specification
  • Wattage: 12W
  • Output: 5~8VDC
  • 100~240VAC Universal Input
  • Frequency: 50~60Hz

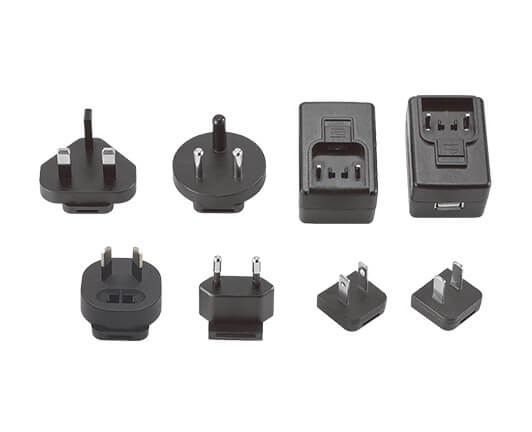

  • AC Plug type: U: USA, E: EU, K: UK, A: SAA, C: China,
              S: South Africa, B: Korea, I: India

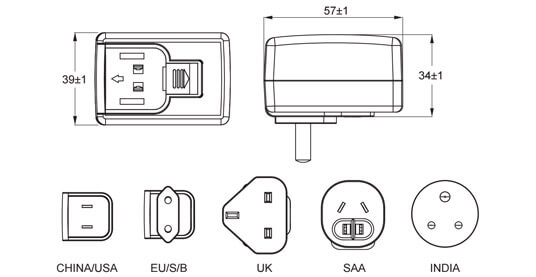

  • Case Size: 57L x 39W x 34H (mm)
  • Weight: 70g
Environment
  • Operating Temperature -20 to 40°C
  • Storage Temperature -20 to 85°C
  • Operating Humidity 10% to 90 %
  • Storage Humidity 5% to 95 %
Input
  • Input Range 100 to 240 VAC
  • Frequency 50 to 60 Hz
  • Input Current ≤ 1A
  • Inrush Current ≤ 60A/230VAC
  • Hold up time ≥ 8.3ms
  • Turn On Time ≤ 5s
Safety
  • Certified for whole series: UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035), CCC, UKCA
  • Certified for assigned models: PSE
