EA1019MYZS
FEATURES
- LPS Compliance
-
Protections:
Short circuit / Over Voltage / Over current
- Energy Efficiency Level VI or CoC Tier II
- No Load Power Consumption ≤ 0.1W (VI), ≤ 0.075W (Tier II)
- MTBF > 100,000 hours
Product Specification
- Wattage: 24W
- Output: 28~35VDC
- 100~240VAC Universal Input
- Frequency: 50~60Hz

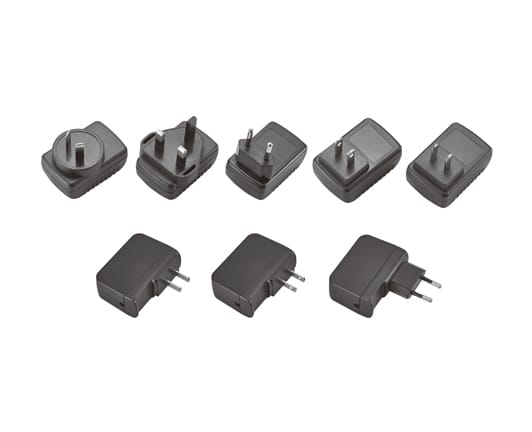

- AC Plug type: U: USA, E: EU, K: UK, A: SAA, C: China

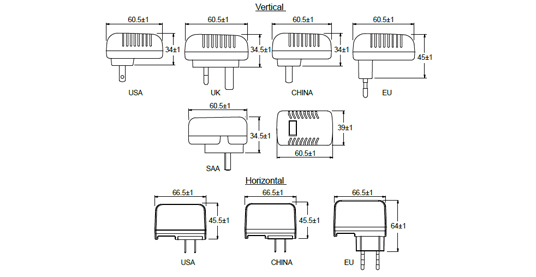

- Case Size:
Vertical: 60.5L x 39W x 45H (mm)
Horizontal: 66.5L x 64W x 26H (mm)
- Weight: 120g
Environment
- Operating Temperature -20 to 40°C
- Storage Temperature-20 to 85°C
- Operating Humidity10% to 90 %
- Storage Humidity5% to 95 %
Input
- Input Range100 to 240 VAC
- Frequency50 to 60 Hz
- Input Current≤ 0.8A
- Inrush Current≤ 80A/230VAC
- Hold up time≥ 8.3ms
- Turn On Time≤ 3s
Safety
- Certified for whole series: UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035), CCC, BSMI, UKCA
- Certified for assigned models: PSE, BIS, Argentina, RCM, NRCAN
