EA1095XG

EA1095XG
EA1095XG
FEATURES
  • LED Indicator
  • LPS Compliance
  • Active PFC Function
  • Protections:
    Short circuit / Over Voltage / Over current
    Over temperature
  • Energy Efficiency Level VI or CoC Tier II
  • No Load Power Consumption ≤ 0.21W (VI), ≤ 0.15W (Tier II)
  • MTBF > 100,000 hours
Datasheet
Product Specification
  • Wattage: 80W
  • Output: 32~42VDC
  • 100~240VAC Universal Input
  • Frequency: 50~60Hz
  • AC Inlet: C14, C8, C6, C18

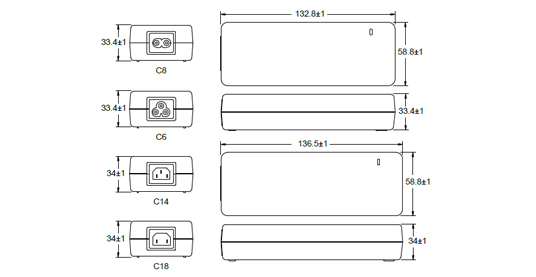

  • Case Size:
    C8, C6: 132.8L x 58.8W x 33.4H (mm)
    C14, C18: 136.5L x 58.8W x 34H (mm)
  • Weight: 420g
Environment
  • Operating Temperature-20 to 40°C
  • Storage Temperature-20 to 85°C
  • Operating Humidity10% to 90 %
  • Storage Humidity5% to 95 %
Input
  • Input Range100 to 240 VAC
  • Frequency50 to 60 Hz
  • Input Current≤ 2.5A
  • Inrush Current≤ 120A/230VAC
  • Hold up time≥ 8.3ms
  • Turn On Time≤ 3s
Safety
  • Certified for whole series: UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035), CCC, UKCA
  • Certified for assigned models: BSMI, PSE, BIS, RCM, KC, CU, PSB, NRCAN, Argentina
