EA1170XM

EA1170XM
EA1170XM
FEATURES
  • LED Indicator
  • Active PFC Function
  • Protections:
    Short circuit / Over Voltage / Over current
    Over temperature
  • Energy Efficiency Level VI or CoC Tier II
  • No Load Power Consumption ≤ 0.21W (VI), ≤ 0.15W (Tier II)
  • MTBF > 50,000 hours
Datasheet
PRODUCT SPECIFICATION
  • Wattage: 160W
  • Output: 12~16VDC
  • 100~240VAC Universal Input
  • Frequency: 50~60Hz

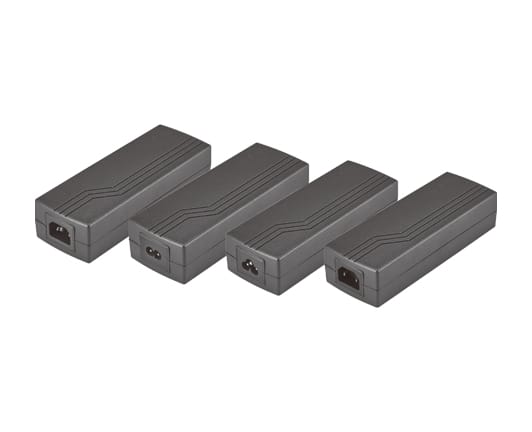

  • AC Inlet: C14, C8, C6, C18

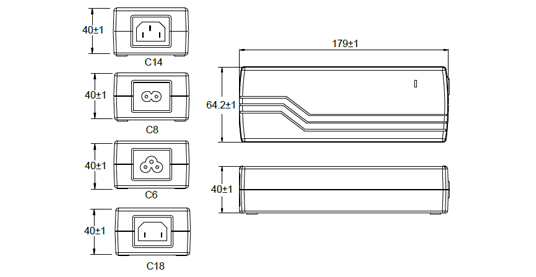

  • Case Size: 179L x 64.2W x 40H (mm)
  • Weight: 705g
ENVIRONMENT
  • Operating Temperature -20 to 40°C
  • Storage Temperature -20 to 85°C
  • Operating Humidity 10% to 90 %
  • Storage Humidity 5% to 95 %
INPUT
  • Input Range 100 to 240 VAC
  • Frequency 50 to 60 Hz
  • Input Current ≤ 2.5A
  • Inrush Current ≤ 120A/230VAC
  • Hold up time ≥ 8.3ms
  • Turn On Time ≤ 3s
SAFETY
  • Certified for whole series: UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035)
  • Certified for assigned models: BSMI, PSE, BIS, RCM, KC, CU, PSB, NRCAN, Argentina
