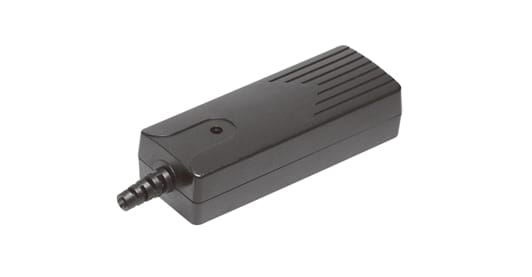

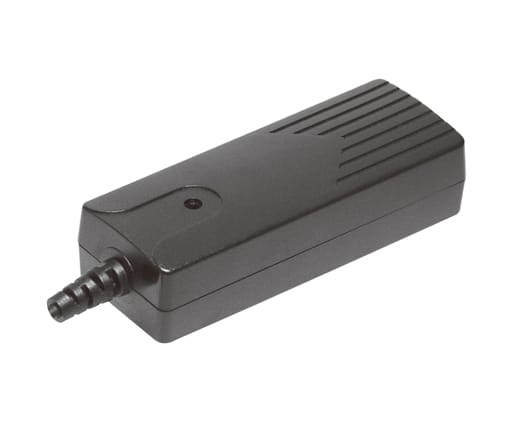

ED1075 - DC/DC Power Converter
FEATURES
  • Input Voltage Protection
  • LED Indicator
  • Protections:
    Short circuit / Over voltage / Over current
    Over temperature
  • Efficiency 85% Min. Nominal Input
  • MTBF > 50,000 hours
Datasheet
Product Specification
  • Wattage: 75W
  • Output: 15~24VDC
  • 11~16VDC Input

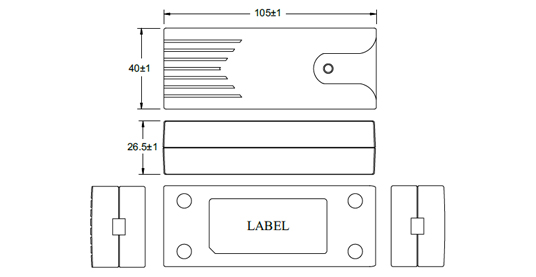

  • Case Size: 105L x 40W x 26.5H (mm)
  • Weight: 220g
Environment
  • Operating Temperature-20 to 40°C
  • Storage Temperature-20 to 85°C
  • Operating Humidity10% to 90 %
  • Storage Humidity5% to 95 %
Input
  • Input Range11 to 16 VDC
  • Input Current7A Max.
  • Turn On Time≤ 3s
Safety
  • Complied with FCC, CE
