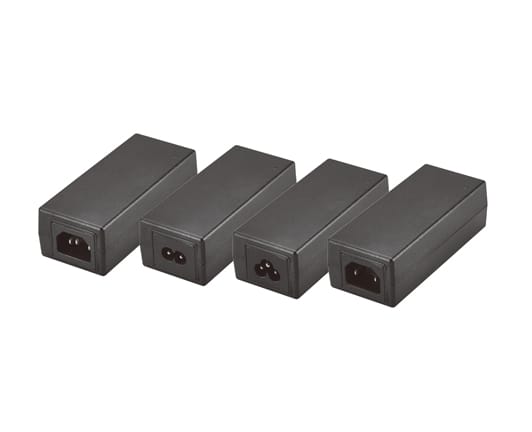

EM1068XA - AC DC Medical Adaptor
FEATURES
  • 2 x MOPP Compliance, IEC/EN60601-1 Approval
  • LED Indicator
  • LPS Compliance
  • Protections:
    Short circuit / Over voltage / Over current
    Over temperature (optional)
  • Energy Efficiency Level VI
  • No Load Power Consumption
    Less than 50W: ≤ 0.1W
    More than (includes) 50W: ≤ 0.21W
  • MTBF > 100,000 hours
  • IEC 60601-1 (ed.3.2) & IEC/EN 60601-1-2 (ed.4.1) certified
Datasheet
Product Specification
  • Wattage: 25W
  • Output: 5~9VDC
  • 100~240VAC Universal Input
  • Frequency: 50~60Hz

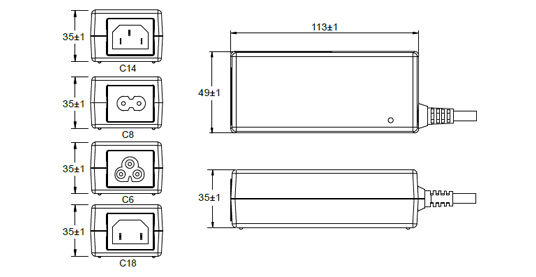

  • AC Inlet: C14, C8, C6, C18
  • Case Size: 113L x 49W x 35H (mm)
  • Weight: 300g
Environment
  • Operating Temperature -20 to 40°C
  • Storage Temperature -20 to 85°C
  • Operating Humidity 10% to 90 %
  • Storage Humidity 5% to 95 %
Input
  • Input Range100 to 240 VAC
  • Frequency50 to 60 Hz
  • Input Current≤ 2A
  • Inrush Current≤ 120A/230VAC
  • Hold up time≥ 8.3ms
  • Turn On Time≤ 3s
Safety
  • Certified for whole series: ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, TUV EN 60601-1, CB IEC 60601-1, CE EMC(EN 60601-1-2), TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035), UKCA
  • Certified for assigned models: UL 62368-1 (Class I only), CAN/CSA C22.2 No. 62368-1 (Class I only), CCC, NRCAN, BSMI, PSE, KC, CU, PSB
