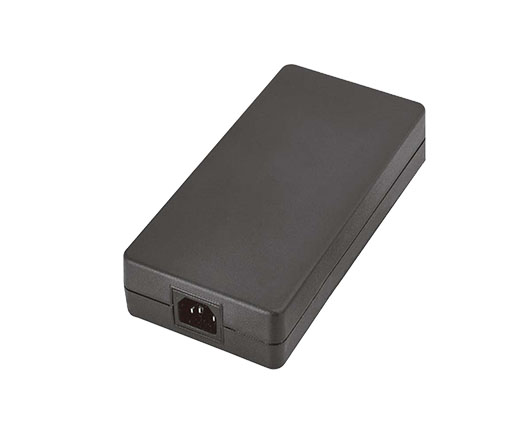

EM1420XB - Medical AC-DC Power Adapter
FEATURES
  • 2 x MOPP Compliance, IEC/EN60601-1 Approval
  • Gallium Nitride Based Design
  • Compact Size
  • Active PFC Function
  • Protections:
    Short circuit / Over voltage / Over current
    Over temperature
  • Energy Efficiency up to 95%
  • No Load Power Consumption ≦ 1W
  • MTBF > 100,000 hours
Datasheet
Product Specification
  • Wattage: 330W
  • Output: 19~24VDC
  • 100~240VAC Universal Input
  • Frequency: 50~60Hz
  • AC Inlet: C14
  • Case Size: 200L x 100W x 36H (mm)
  • Weight: 950g
Environment
  • Operating Temperature -20 to 40°C
  • Storage Temperature -20 to 85°C
  • Operating Humidity 10% to 90 %
  • Storage Humidity 5% to 95 %
Input
  • Input Range100 to 240 VAC
  • Frequency50 to 60 Hz
  • Input Current5A to 2.5A
  • Inrush Current≤ 140A/230VAC
  • Hold up time≥ 8.3ms
  • Turn On Time≤ 3s
Safety
  • Complied with ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, TUV EN 60601-1, CB IEC 60601-1, CE EMC(EN 60601-1-2), UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035), UKCA
