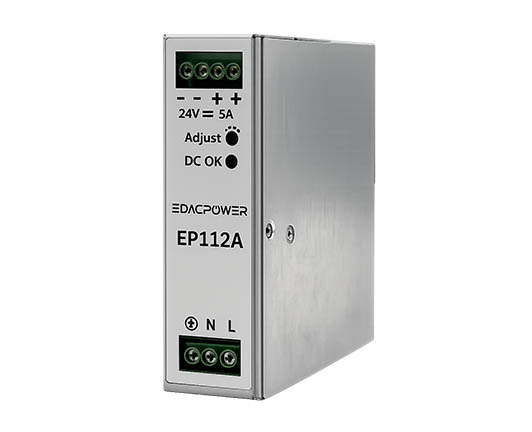

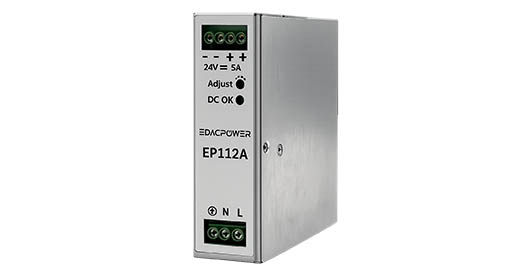

EP112AC

EP112AC
EP112AC
FEATURES
  • Universal AC Input / Full Range
  • Convection Cooled (Free Air Cooling)
  • DIN Rail Mountable: Fits TS-35/7.5 or TS-35/15
  • Protections :
    Short circuit / Over voltage / Over current
    Over temperature
  • 100% Full Load Burn-in Test
  • MTBF > 100,000 hours
Datasheet
Product Specification
  • Wattage: 120W
  • Output: 48VDC
  • 100~240VAC Universal Input
  • Frequency: 50~60Hz
  • Case Size: 125.2L x 113.5W x 40H (mm)
  • Weight: 670g
Environment
  • Operating Temperature -20 to 70°C
  • Storage Temperature -40 to 85°C
  • Operating Humidity 20% to 95%
  • Storage Humidity 10% to 95%
Input
  • Input Range 100 to 240 VAC
  • Frequency 50 to 60Hz
  • Input Current ≤ 3.5A
  • Inrush Current ≤ 100A
  • Hold Up Time ≥ 8.3ms
  • Turn On Time ≤ 3s
Safety
  • Complied with UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC (EN 55032 + EN 55035), UL 61010-1, CAN/CSA-C22.2 No. 61010-1, UL 61010-2-201, CAN/CSA-C22.2 No. 61010-2-201
