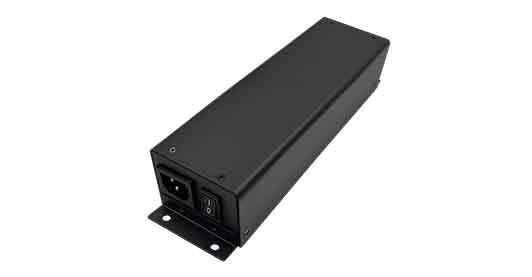

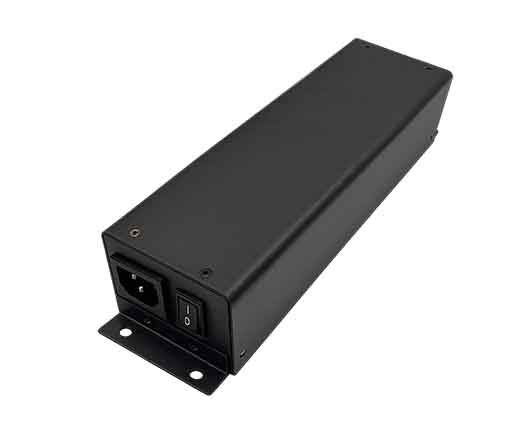

EP1186XA

EP1186XA
EP1186XA
FEATURES
  • IEC/EN62368, IEC/EN61558, UL1012 Compliance
  • Active PFC Function
  • Protections :
    Short circuit / Over voltage / Over current
    Over temperature
  • Energy Efficiency up to 91%
  • No Load Power Consumption ≤ 0.15 W
  • MTBF > 100,000 hours
Datasheet
Product Specification
  • Wattage: 180W Convection / 288W Peak(1s)
  • Output: 36VDC
  • 100~240VAC Universal Input
  • Frequency: 50~60Hz
  • AC Inlet: C14

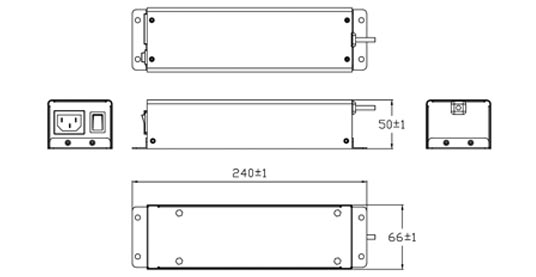

  • Mechanical Size: 240L x 66W x 50H (mm)
  • Weight: 900g
Environment
  • Operating Temperature -20 to 40°C
  • Storage Temperature -20 to 85°C
  • Operating Humidity 10% to 90 %
  • Storage Humidity 5% to 95 %
Input
  • Input Range 100 to 240 VAC
  • Frequency 50 to 60 Hz
  • Input Current 2A to 1A/span>
  • Inrush Current ≤ 120A/230VAC
  • Hold Up Time ≥ 10ms
  • Turn On Time ≤ 3s
Safety
  • Complied with UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035) UL 1012, TUV EN 61558-1/EN 61558-2-16, CB IEC 61558-1/IEC 61558-2-16,CE EMC(EN 55014-1+EN 55014-2), UKCA
