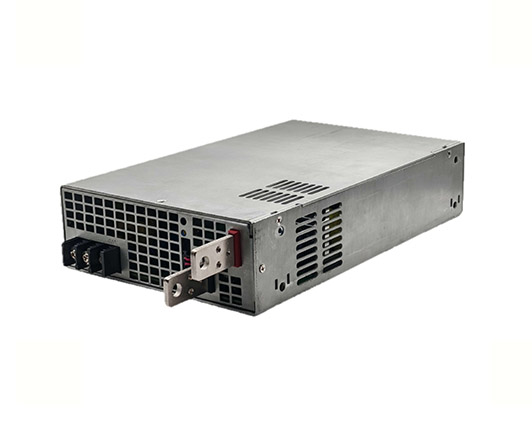

EP1240027YY 2400W Enclosed AC DC Power Supply
FEATURES
  • 100-240VAC Universal Input
  • Protections:
    Short circuit / Over voltage / Over current
    Over temperature
  • Energy Efficiency ≥ 88% depends on models
  • MTBF > 50,000 hours
  • Active Fan for Forced Cooling
  • Built-in Active PFC Function
  • -30~+70C Working Temperature
  • Built-in Remote ON-OFF Control
  • LED Indicator for Power On
Datasheet
Product Specification
  • Wattage: 2400W
  • Output: 27VDC
  • 100~240VAC Universal Input
  • Frequency: 50~60Hz
  • Mechanical Size: 278L x 177.8W x 63.5H (mm)
  • Weight: 3000g
Environment
  • Operating Temperature -30 to 70°C
  • Storage Temperature -40 to 85°C
  • Operating Humidity 20% to 90 %
  • Storage Humidity 10% to 95 %
Input
  • Input Range 100 to 240 VAC
  • Frequency 50 to 60 Hz
  • Input Current ≤ 24A
  • Inrush Current ≤ 260A/230VAC
  • Hold Up Time ≥ 10ms
  • Turn On Time ≤ 3s
