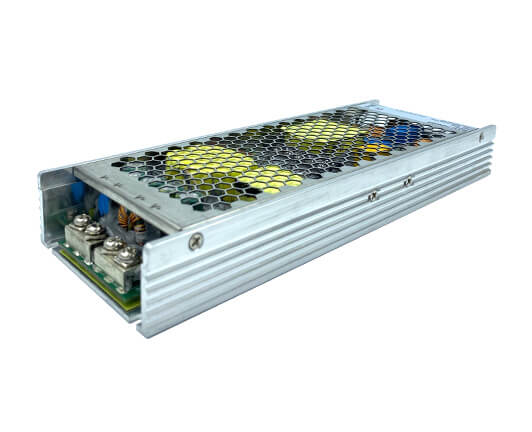

EP1500B

EP1500B
EP1500B
FEATURES
  • Slim and Low Profile
  • Protections:
    Short circuit / Over voltage / Over current
    Over temperature
  • Energy Efficiency ≥ 92%~95% depends on models
  • MTBF > 50,000 hours
  • Fanless and Conduction-cooled Design
  • Withstand 300VAC Surge Input for 5 seconds
  • Built-in Active PFC Function
  • DC OK Active Signal
  • LED Indicator
Datasheet
Product Specification
  • Wattage: 501.6W
  • Output: 24VDC
  • 100~240VAC Universal Input
  • Frequency: 50~60Hz
  • Mechanical Size: 232L x 81W x 31H (mm)
  • Weight: 1800g
Environment
  • Operating Temperature -30 to 70°C
  • Storage Temperature -40 to 85°C
  • Operating Humidity 20% to 90 %
  • Storage Humidity 10% to 95 %
Input
  • Input Range 100 to 240 VAC
  • Frequency 50 to 60 Hz
  • Input Current ≤ 5A
  • Inrush Current ≤ 60A/230VAC
  • Hold Up Time ≥ 8.3ms
  • Turn On Time ≤ 1s
Safety
  • Complied with UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035)
