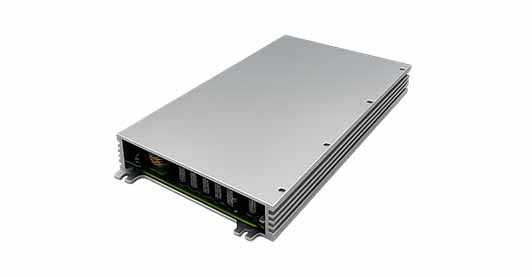

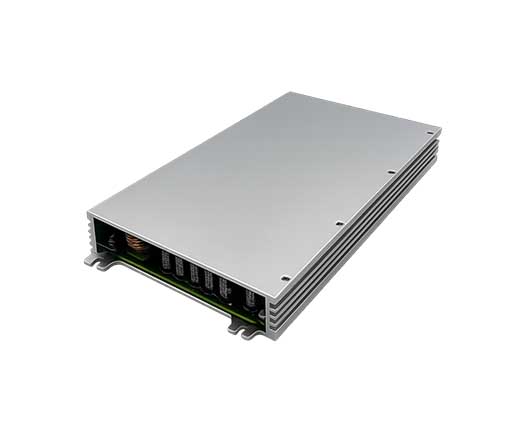

EP190A

EP190A
EP190A
FEATURES
  • Slim and Low Profile
  • Protections :
    Short circuit / Over voltage / Over current
    Over temperature
  • Energy Efficiency ≥ 92%~95%
  • MTBF > 50,000 hours
  • Fanless and Conduction-cooled Design
  • Built-in Active PFC Function
  • 900W Convection / 1500W Peak Load (5s)
Datasheet
Product Specification
  • Wattage: 900W Convection / 1500W Peak Load (5s)
  • Output: 48VDC
  • 100~240VAC Universal Input
  • Frequency: 50~60Hz

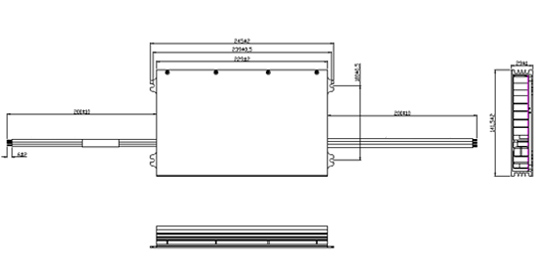

  • Mechanical Size: 245L x 141.5W x 29H (mm)
  • Weight: 1650g
Environment
  • Operating Temperature -20 to 40°C
  • Storage Temperature -20 to 85°C
  • Operating Humidity 10% to 90%
  • Storage Humidity 5% to 95%
Input
  • Input Range 100 to 240 VAC
  • Frequency 50 to 60Hz
  • Input Current ≤ 20A
  • Inrush Current ≤ 80A/230VAC
  • Hold Up Time ≥ 8.3ms
  • Turn On Time ≤ 3s
Safety
  • Complied with TUV EN 62368-1, CB IEC 62368-1, CE EMC(EN 55032+EN 55035), FCC Part 15B, TUV EN 61558-1/EN 61558-2.16, CB IEC 61558-1/IEC 61558-2.16, CE EMC(EN 55014-1+EN 55014-2)
