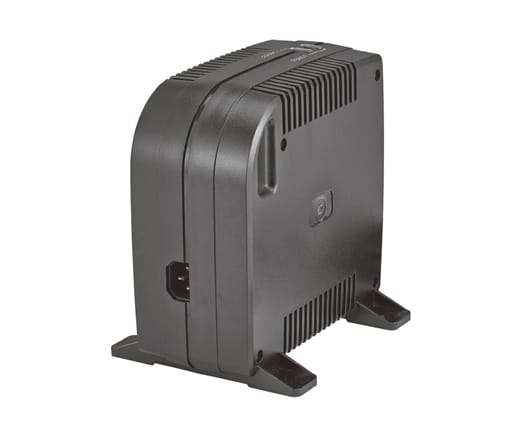

EA1230B : Lead Acid Battery Charger
FEATURES
  • Lead-Acid Battery Charger
  • Constant Power Charging Mode
  • Battery Polarity Reverse Protection
  • 2 LED Charging Indicator
  • 2 Step Fast Charging Capability
  • Protections:
    Short circuit / Over voltage / Over current
    Over temperature
  • MTBF > 50,000 hours
  • Recommend for 24V/55~90Ah Lead-Acid Battery
Datasheet
Product Specification
  • Charge Current: 8A
  • Output: 24V Lead-Acid
  • 100~240VAC Universal Input
  • Frequency: 50~60Hz
  • AC Inlet: C14

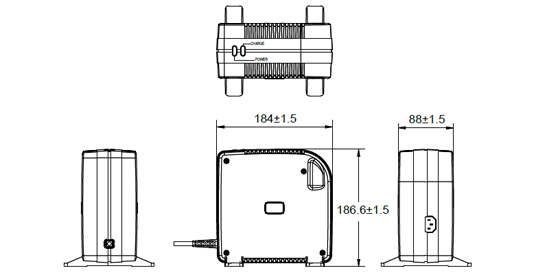

  • Case Size: 184L x 88W x 186.6H (mm)
Environment
  • Operating Temperature -20 to 40°C
  • Storage Temperature -20 to 85°C
  • Operating Humidity 10% to 90 %
  • Storage Humidity 5% to 95 %
Input
  • Input Range 100 to 240 VAC
  • Frequency 50 to 60 Hz
  • Input Current 6A Max.
  • Inrush Current≤ 220A/230VAC
  • Hold up time≥ 8.3ms
  • Turn On Time≤ 3s
Safety
  • Certified for whole series: UL/cUL 1012, EN/IEC 60335-1/EN IEC 60335-2-29
  • Complied with CE, FCC
