EC1085XA

EC1085XA
EC1085XA
FEATURES
  • Application: E-bike, E-scooter, E-wheelchair, E-tool
  • CC/CV Charging Mode
  • For 42V/10S Battery Pack Use
  • Battery Polarity Reverse Protection
  • LED Indicator
  • Protections:
    Short circuit / Over voltage / Over current
    Over temperature
  • No Load Power Consumption ≤ 1W
  • MTBF > 100,000 hours
Datasheet
Product Specification
  • Charge Current: 2A
  • Output: 42VDC Lithium-ion
  • 100 ~ 240VAC Universal Input
  • Frequency: 50 ~ 60Hz
  • AC Inlet: C8, C6

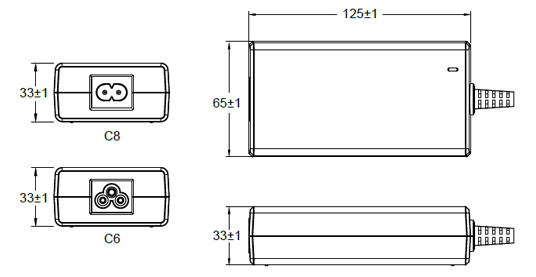

  • Case Size: 125L x 65W x 33H (mm)
  • Weight: 420g
Environment
  • Operating Temperature -20 to 40°C
  • Storage Temperature -20 to 85°C
  • Operating Humidity 10% to 90 %
  • Storage Humidity 5% to 90 %
Input
  • Input Range 100 to 240 VAC
  • Frequency 50 to 60 Hz
  • Input Current≤ 2.2A
  • Inrush Current≤ 70A/230VAC
Safety
  • Certified for whole series: EN/IEC 60335-1/EN IEC 60335-2-29, FCC Part 15B, CE EMC(EN 55014-1+EN 55014-2), UKCA
  • Complied with UL 1012
  • Certified for assigned models: BSMI
