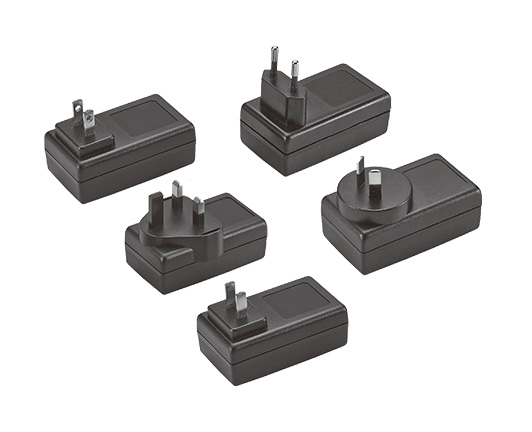

EM102AAYZ | 2 x MOPP Medical AC/DC Power Supply
FEATURES
  • 2 x MOPP, IEC/EN60601-1 Compliance
  • LPS Compliance
  • Protections:
    Short circuit / Over voltage / Over current
  • Energy Efficiency up to 87%
  • No Load Power Consumption ≤ 0.075W, ≤ 0.1W (For 36~48V)
  • MTBF > 100,000 hours
Datasheet
Product Specification
  • Wattage: 15W
  • Output: 5~8VDC
  • 100~240VAC Universal Input
  • Frequency: 50~60Hz
  • AC Plug type: U: USA, E: EU, K: UK, A: SAA, C: China

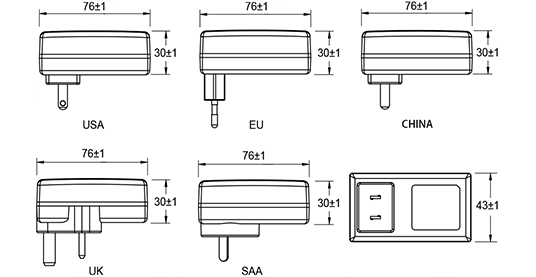

  • Case Size: 76L x 43W x 30H (mm)
  • Weight: 150g
Environment
  • Operating Temperature-20 to 40°C
  • Storage Temperature-20 to 85°C
  • Operating Humidity10% to 90 %
  • Storage Humidity5% to 95 %
Input
  • Input Range100 to 240 VAC
  • Frequency50 to 60 Hz
  • Input Current ≤ 0.8A
  • Inrush Current≤ 80A/230VAC
  • Hold up time ≥ 8.3ms
  • Turn On Time≤ 3s
Safety
  • Complied with ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, TUV EN 60601-1, CB IEC 60601-1, CE EMC(EN 60601-1-2)UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035), UKCA
